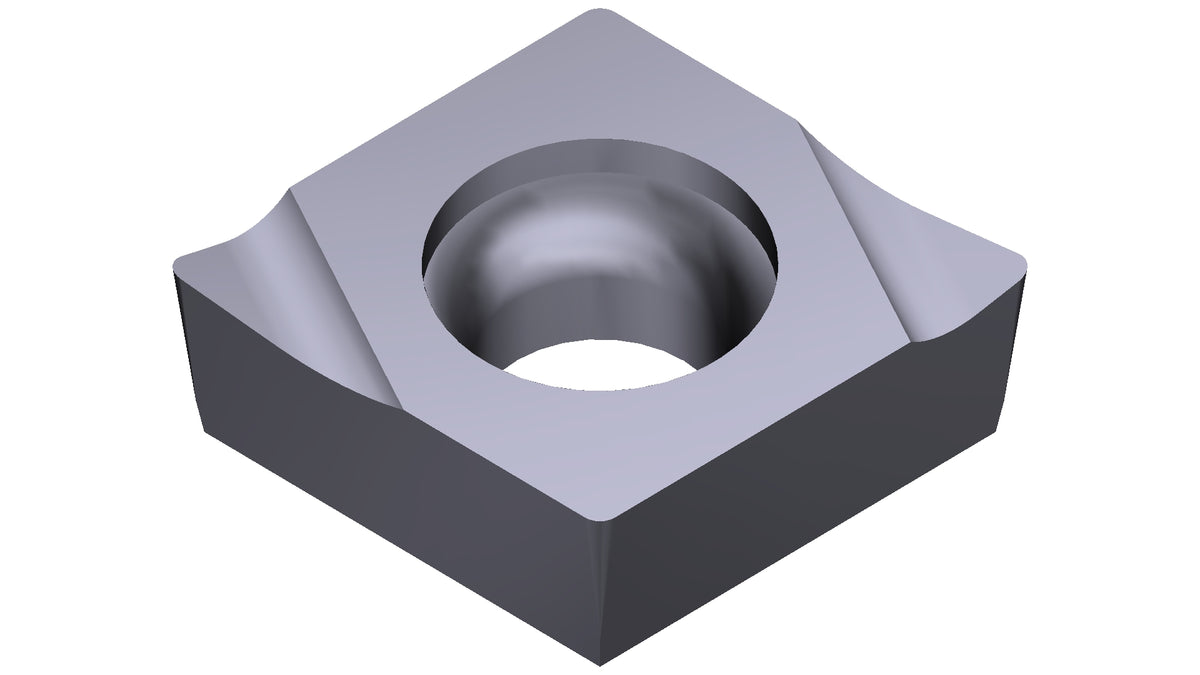

CCGT03X102R-FY-AC5025S
Sumitomo Electric Hardmetal

CCGT03X102R-FY-AC5025S

Turning InsertAC5025SSKU: CCGT03X102R-FY-AC5025S

Sign in to view pricing

Sign In Register
Request a Quote

100% genuine

Technical support

Share
Item code
CCGT03X102R-FY-AC5025S
Products Classification 1
ISO Standard
Products Classification 2
80°Diamond Type
GRADE
AC5025S
Cutting range
Finishing
Hand
Right
Hole diameter (d1)
1.8
Inscribed circle (d)
3.5
Cutting edge length (l)
3.55
Relief angle
7
Angle
80
Chipbreaker rake angle
15
RE
0.2
Thickness (s)
1.4
Inscribed circle tolerance (td)
0.025
Height tolerance (tm)
0.025
Thickness tolerance (ts)
0.13
Negative Positive
Positive
Hole
Yes
Inserts color
Silver
Chipbreaker
FY
Insert shape code
C
Relief angle code
C
Tolerance code
G
Insert hole code
T
Cutting edge length code
3
Thickness code
X1
Nose radius (r)
0.2
