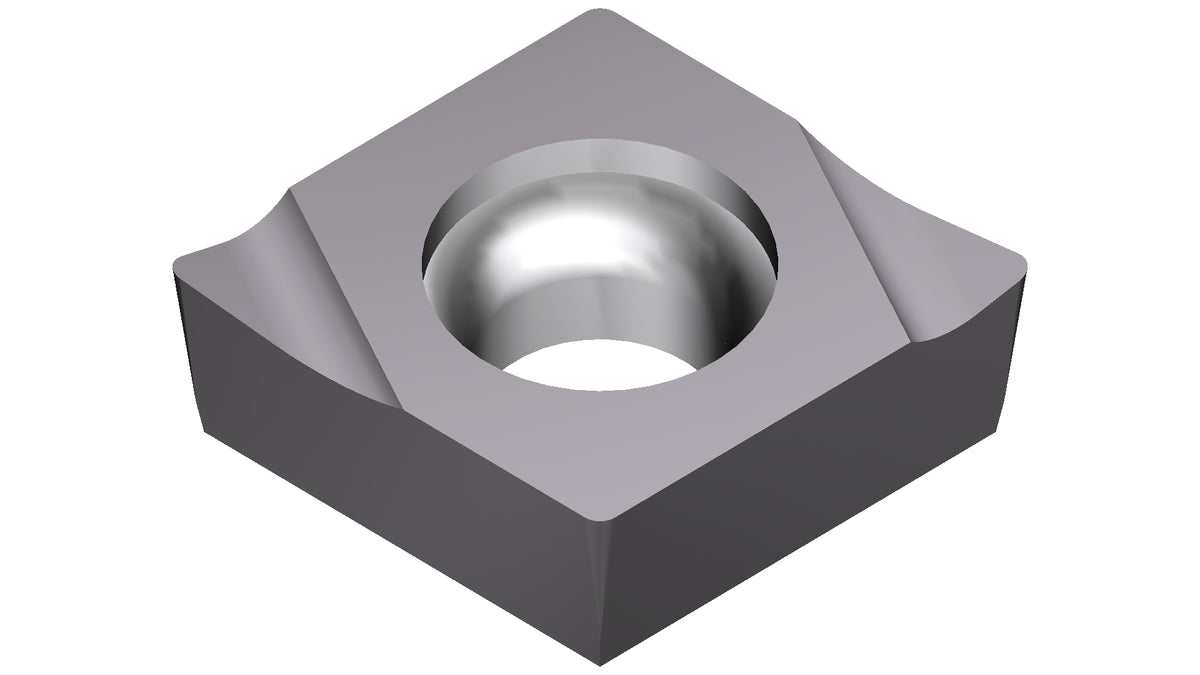

CCGT04X101R-FY-AC1030U
Sumitomo Electric Hardmetal

CCGT04X101R-FY-AC1030U

Turning InsertAC1030USKU: CCGT04X101R-FY-AC1030U

Sign in to view pricing

Sign In Register
Request a Quote

100% genuine

Technical support

Share
Item code
CCGT04X101R-FY-AC1030U
Products Classification 1
ISO Standard
Products Classification 2
80°Diamond Type
GRADE
AC1030U
Cutting range
Finishing
Hand
Right
Hole diameter (d1)
2.3
Inscribed circle (d)
4.3
Cutting edge length (l)
4.37
Relief angle
7
Angle
80
Chipbreaker rake angle
15
RE
0.1
Thickness (s)
1.8
Inscribed circle tolerance (td)
0.025
Height tolerance (tm)
0.025
Thickness tolerance (ts)
0.13
Negative Positive
Positive
Hole
Yes
Inserts color
Silver
Chipbreaker
FY
Insert shape code
C
Relief angle code
C
Tolerance code
G
Insert hole code
T
Cutting edge length code
4
Thickness code
X1
Nose radius (r)
0.1
