Sumitomo Electric Hardmetal

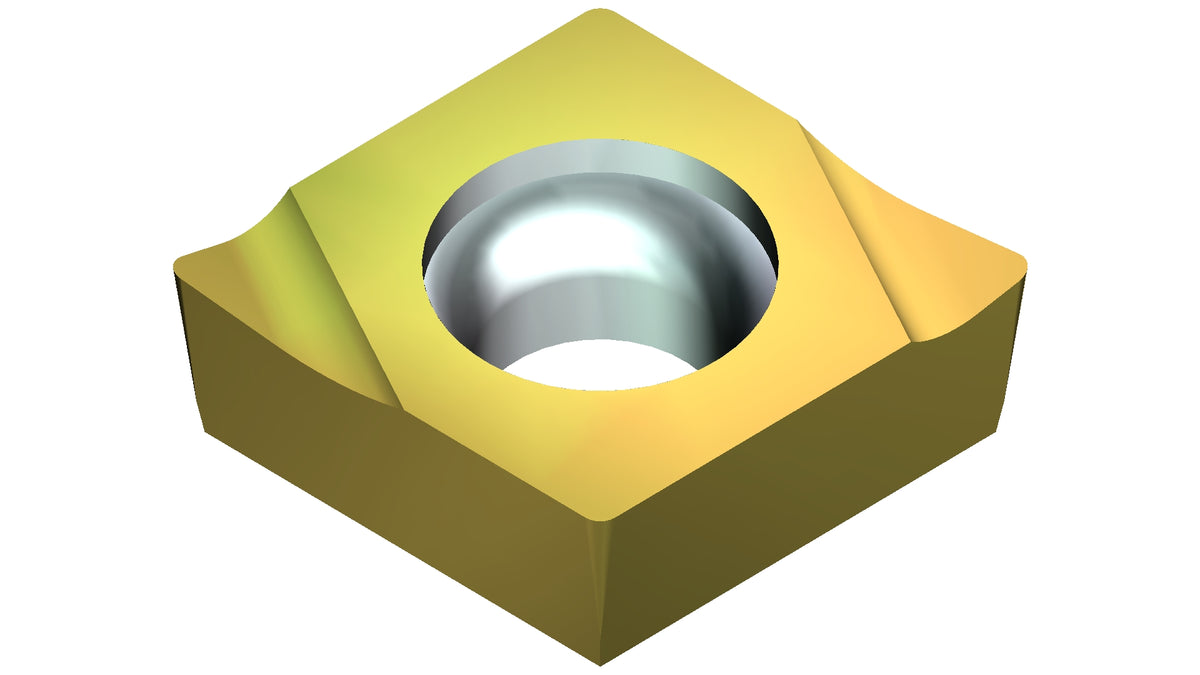

CCGT04X102R-FY-T1500Z
Turning InsertT1500ZSKU: CCGT04X102R-FY-T1500Z
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- CCGT04X102R-FY-T1500Z
- Products Classification 1
- ISO Standard
- Products Classification 2
- 80°Diamond Type
- GRADE
- T1500Z
- Cutting range
- Finishing
- Hand
- Right
- Hole diameter (d1)
- 2.3
- Inscribed circle (d)
- 4.3
- Cutting edge length (l)
- 4.37
- Relief angle
- 7
- Angle
- 80
- Chipbreaker rake angle
- 15
- RE
- 0.2
- Thickness (s)
- 1.8
- Inscribed circle tolerance (td)
- 0.025
- Height tolerance (tm)
- 0.025
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Brown
- Chipbreaker
- FY
- Insert shape code
- C
- Relief angle code
- C
- Tolerance code
- G
- Insert hole code
- T
- Cutting edge length code
- 4
- Thickness code
- X1
- Nose radius (r)
- 0.2
Cutting range
Finishing
Series
Indexable Inserts for Turning
Material
Coated cermet
Category
Turning
