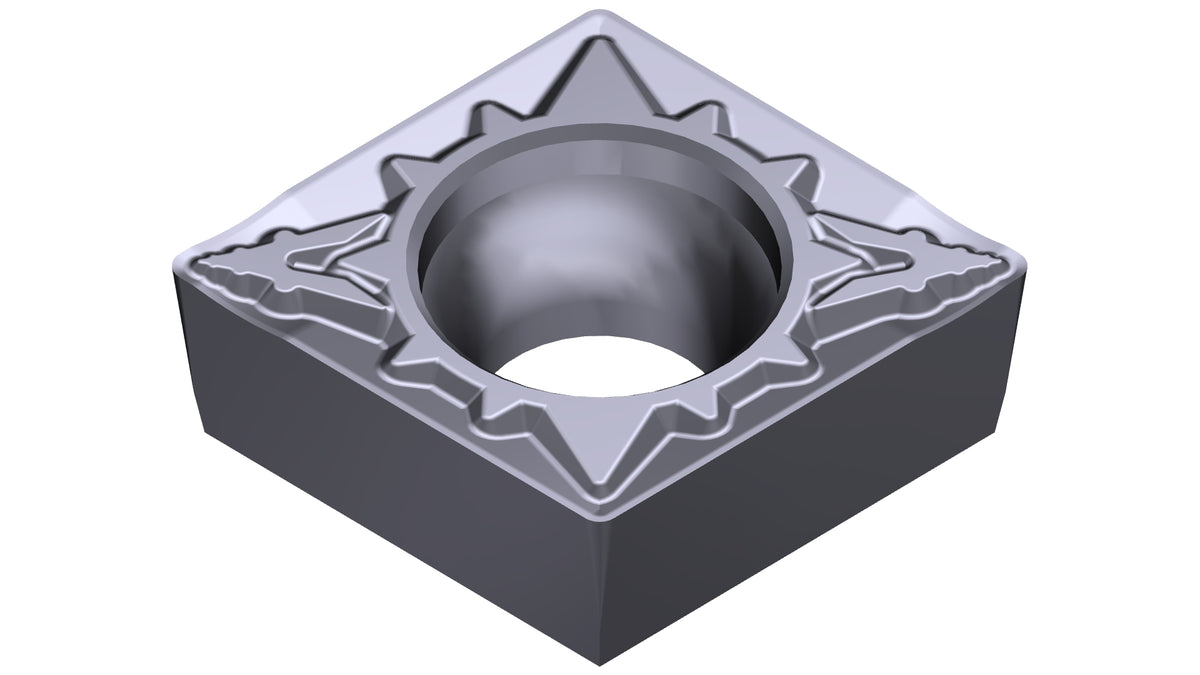

CCGT060201MN-FF-AC5025S
Sumitomo Electric Hardmetal

CCGT060201MN-FF-AC5025S

Turning InsertAC5025SSKU: CCGT060201MN-FF-AC5025S

Sign in to view pricing

Sign In Register
Request a Quote

100% genuine

Technical support

Share
Item code
CCGT060201MN-FF-AC5025S
Products Classification 1
ISO Standard
Products Classification 2
80°Diamond Type
GRADE
AC5025S
Cutting range
Fine Cutting
Hand
Neutral
Hole diameter (d1)
2.8
Inscribed circle (d)
6.35
Cutting edge length (l)
6.4
Relief angle
7
Angle
80
Chipbreaker rake angle
15
RE
< 0.1
Thickness (s)
2.38
Inscribed circle tolerance (td)
0.025
Height tolerance (tm)
0.025
Thickness tolerance (ts)
0.13
Negative Positive
Positive
Hole
Yes
Inserts color
Silver
Chipbreaker
FF
Insert shape code
C
Relief angle code
C
Tolerance code
G
Insert hole code
T
Cutting edge length code
6
Thickness code
2
Nose radius (r)
0.1
