Sumitomo Electric Hardmetal

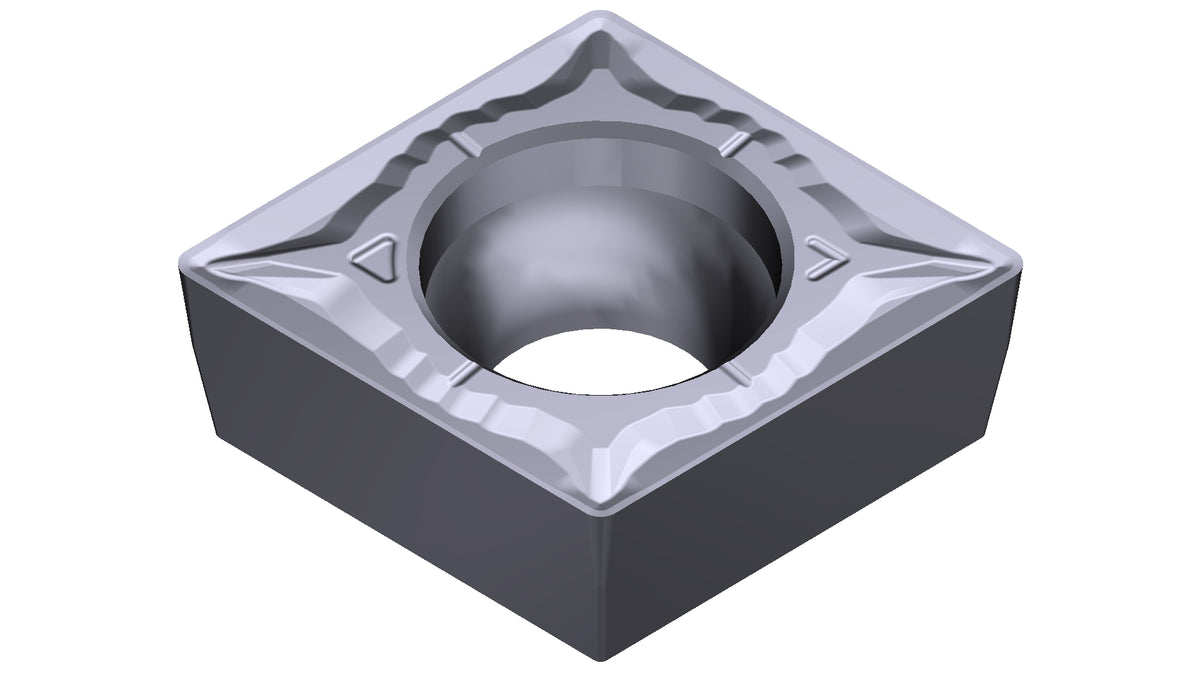

CCMT060204N-GU-AC5025S
Turning InsertAC5025SSKU: CCMT060204N-GU-AC5025S
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- CCMT060204N-GU-AC5025S
- Products Classification 1
- ISO Standard
- Products Classification 2
- 80°Diamond Type
- GRADE
- AC5025S
- Cutting range
- Light to Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 2.8
- Inscribed circle (d)
- 6.35
- Cutting edge length (l)
- 6.4
- Relief angle
- 7
- Angle
- 80
- Chipbreaker rake angle
- 5
- RE
- 0.4
- Thickness (s)
- 2.38
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- GU
- Insert shape code
- C
- Relief angle code
- C
- Tolerance code
- M
- Insert hole code
- T
- Cutting edge length code
- 6
- Thickness code
- 2
- Nose radius (r)
- 0.4
Cutting range
Light to medium cutting
Series
Indexable Inserts for Turning
Material
Coated cermet
Category
Turning
