Sumitomo Electric Hardmetal

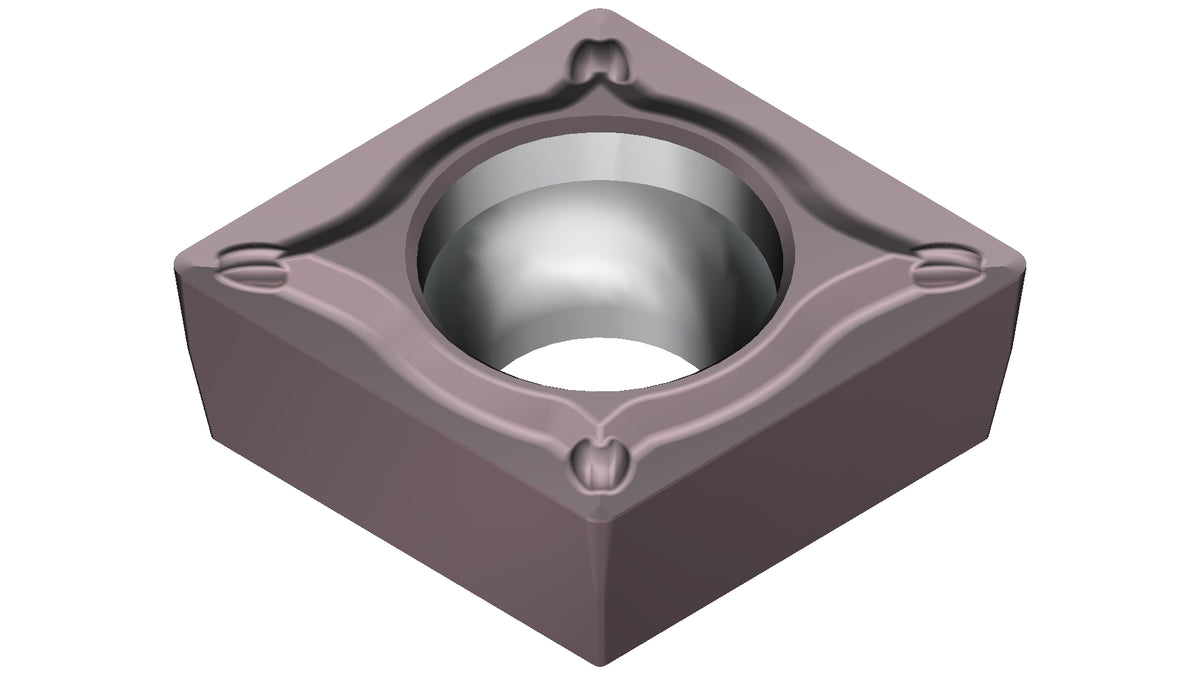

CCMT09T302N-SU-AC6040M
Turning InsertAC6040MSKU: CCMT09T302N-SU-AC6040M
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- CCMT09T302N-SU-AC6040M
- Products Classification 1
- ISO Standard
- Products Classification 2
- 80°Diamond Type
- GRADE
- AC6040M
- Cutting range
- Light Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 4.4
- Inscribed circle (d)
- 9.525
- Cutting edge length (l)
- 9.7
- Relief angle
- 7
- Angle
- 80
- Chipbreaker rake angle
- 8
- RE
- 0.2
- Thickness (s)
- 3.97
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Brown
- Chipbreaker
- SU
- Insert shape code
- C
- Relief angle code
- C
- Tolerance code
- M
- Insert hole code
- T
- Cutting edge length code
- 9
- Thickness code
- T3
- Nose radius (r)
- 0.2
Cutting range
Light cutting
Series
Indexable Inserts for Turning
Material
Coated cermet
Category
Turning
