Sumitomo Electric Hardmetal

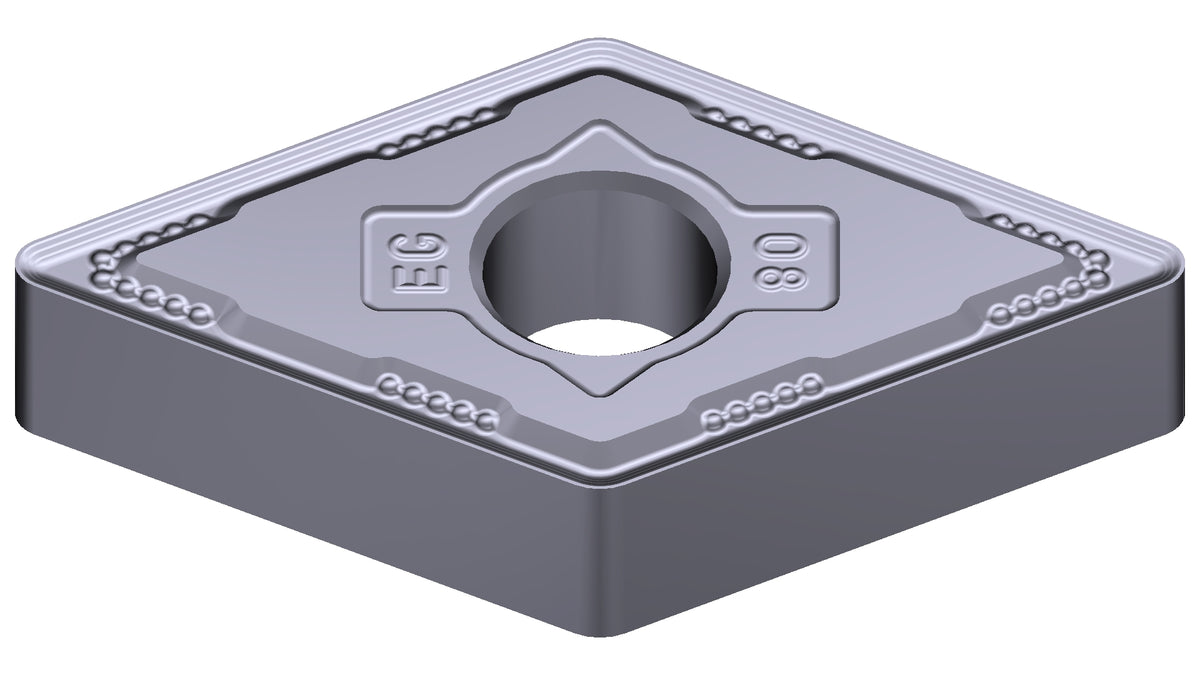

DNMG150612N-EG-AC5015S
Turning InsertAC5015SSKU: DNMG150612N-EG-AC5015S
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- DNMG150612N-EG-AC5015S
- Products Classification 1
- ISO Standard
- Products Classification 2
- 55°Diamond Type
- GRADE
- AC5015S
- Cutting range
- Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 5.16
- Inscribed circle (d)
- 12.7
- Cutting edge length (l)
- 15.5
- Relief angle
- 0
- Angle
- 55
- Chipbreaker rake angle
- 0
- RE
- 1.2
- Thickness (s)
- 6.35
- Inscribed circle tolerance (td)
- 0.08
- Height tolerance (tm)
- 0.15
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- EG
- Insert shape code
- D
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- G
- Cutting edge length code
- 15
- Thickness code
- 6
- Nose radius (r)
- 1.2
Cutting range
Medium cutting
Industry
Aerospace, Small Lathe
Series
Indexable Inserts for Turning
Material
Coated carbide
Category
Turning
