Sumitomo Electric Hardmetal

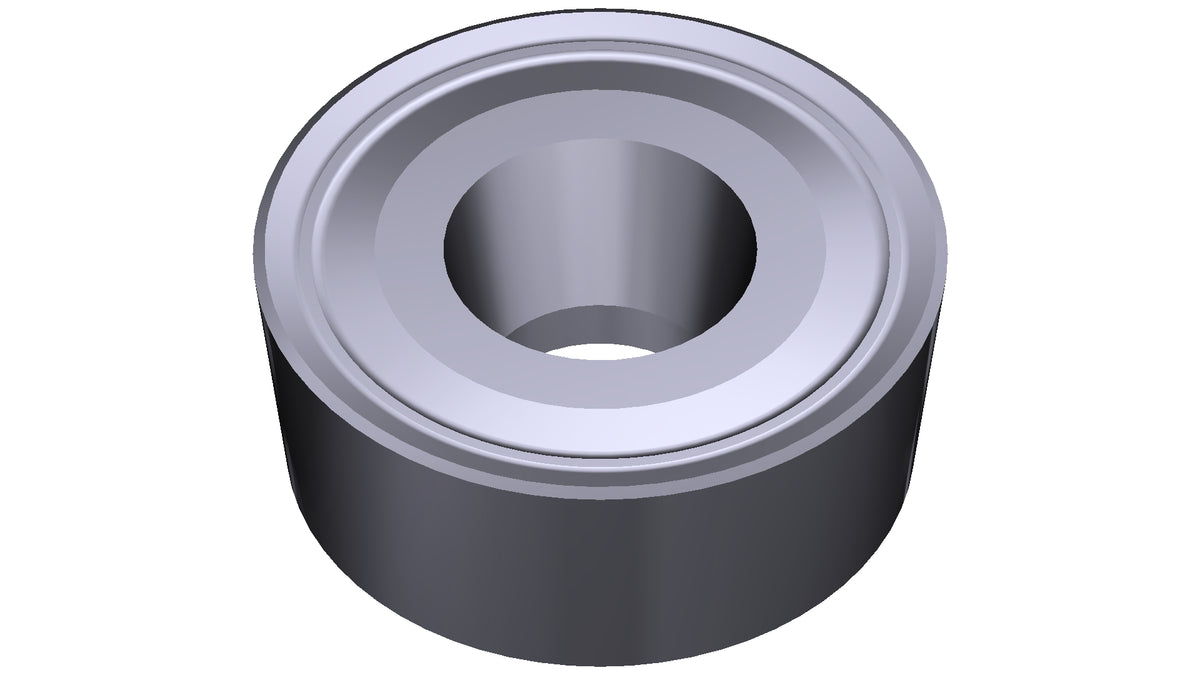

RCMX1204M0N-RP-AC5025S
Turning InsertAC5025SSKU: RCMX1204M0N-RP-AC5025S
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- RCMX1204M0N-RP-AC5025S
- Products Classification 1
- ISO Standard
- Products Classification 2
- Round Type
- GRADE
- AC5025S
- Cutting range
- Roughing
- Hand
- Neutral
- Hole diameter (d1)
- 4.2
- Inscribed circle (d)
- 12
- Cutting edge length (l)
- 12
- Relief angle
- 7
- Chipbreaker rake angle
- -15
- RE
- 0
- Thickness (s)
- 4.76
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- RP
- Insert shape code
- R
- Relief angle code
- C
- Tolerance code
- M
- Insert hole code
- X
- Cutting edge length code
- 12
- Thickness code
- 4
- Nose radius (r)
- 0
Cutting range
Roughing
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
CAD files for this item are not available yet.
