Sumitomo Electric Hardmetal

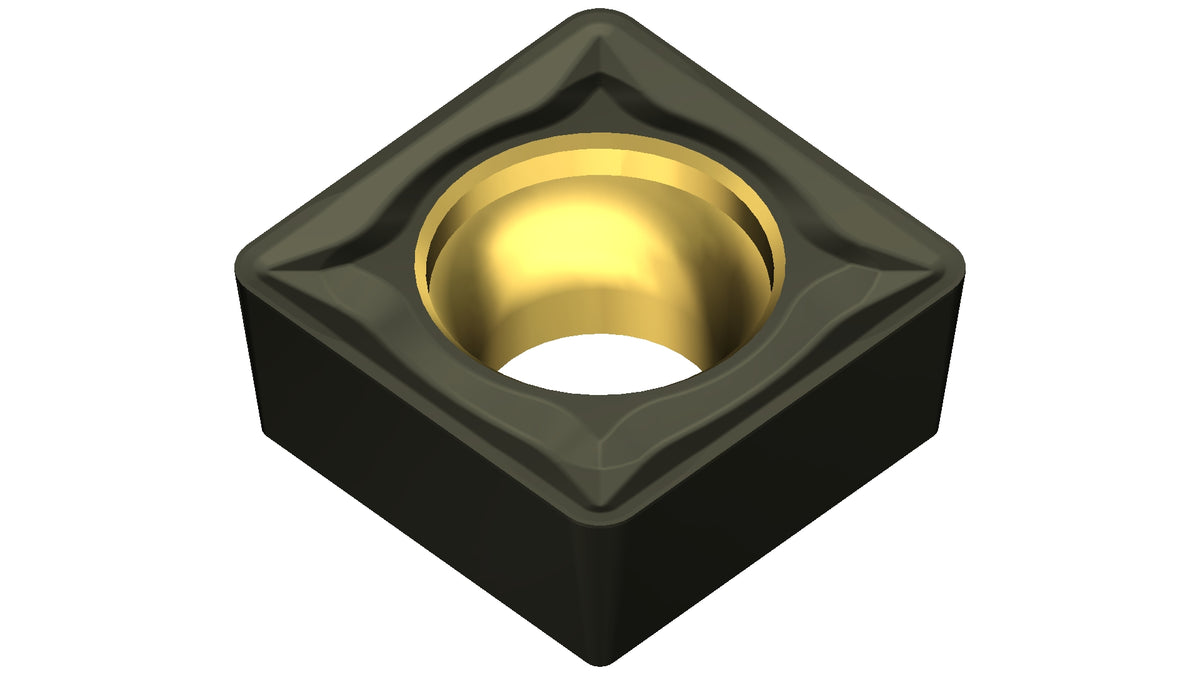

SCMT09T308N-MU-AC4010K
Turning InsertAC4010KSKU: SCMT09T308N-MU-AC4010K
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- SCMT09T308N-MU-AC4010K
- Products Classification 1
- ISO Standard
- Products Classification 2
- Square Type
- GRADE
- AC4010K
- Cutting range
- Light to Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 4.4
- Inscribed circle (d)
- 9.525
- Cutting edge length (l)
- 9.525
- Relief angle
- 7
- Angle
- 90
- Chipbreaker rake angle
- 0
- RE
- 0.8
- Thickness (s)
- 3.97
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Black+Gold
- Chipbreaker
- MU
- Insert shape code
- S
- Relief angle code
- C
- Tolerance code
- M
- Insert hole code
- T
- Cutting edge length code
- 9
- Thickness code
- T3
- Nose radius (r)
- 0.8
Cutting range
Light to medium cutting
Industry
Automotive
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
