Sumitomo Electric Hardmetal

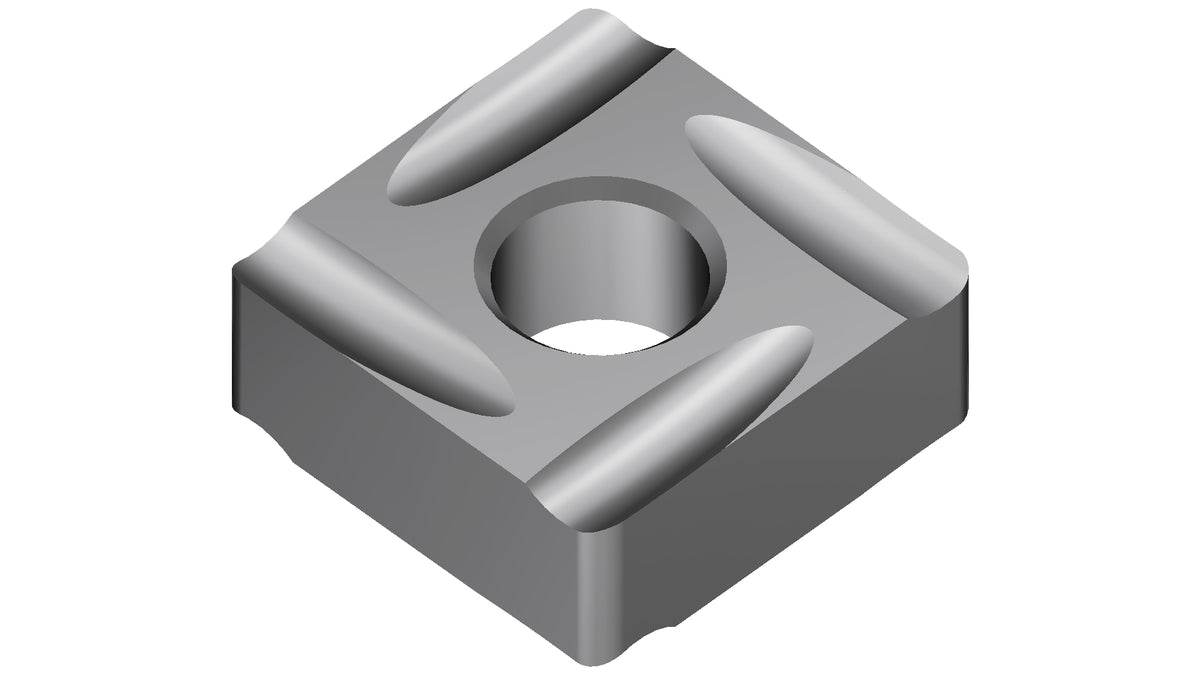

SNGG120408R-AX-H1
Turning InsertH1SKU: SNGG120408R-AX-H1
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- SNGG120408R-AX-H1
- Products Classification 1
- ISO Standard
- Products Classification 2
- Square Type
- GRADE
- H1
- Cutting range
- For Aluminum
- Hand
- Right
- Hole diameter (d1)
- 5.16
- Inscribed circle (d)
- 12.7
- Cutting edge length (l)
- 12.7
- Relief angle
- 0
- Angle
- 90
- Chipbreaker rake angle
- 30
- RE
- 0.8
- Thickness (s)
- 4.76
- Inscribed circle tolerance (td)
- 0.025
- Height tolerance (tm)
- 0.025
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- AX
- Insert shape code
- S
- Relief angle code
- N
- Tolerance code
- G
- Insert hole code
- G
- Cutting edge length code
- 12
- Thickness code
- 4
- Nose radius (r)
- 0.8
Cutting range
For aluminum
Series
Indexable Inserts for Turning
Material
Coated carbide
Category
Turning
