Sumitomo Electric Hardmetal

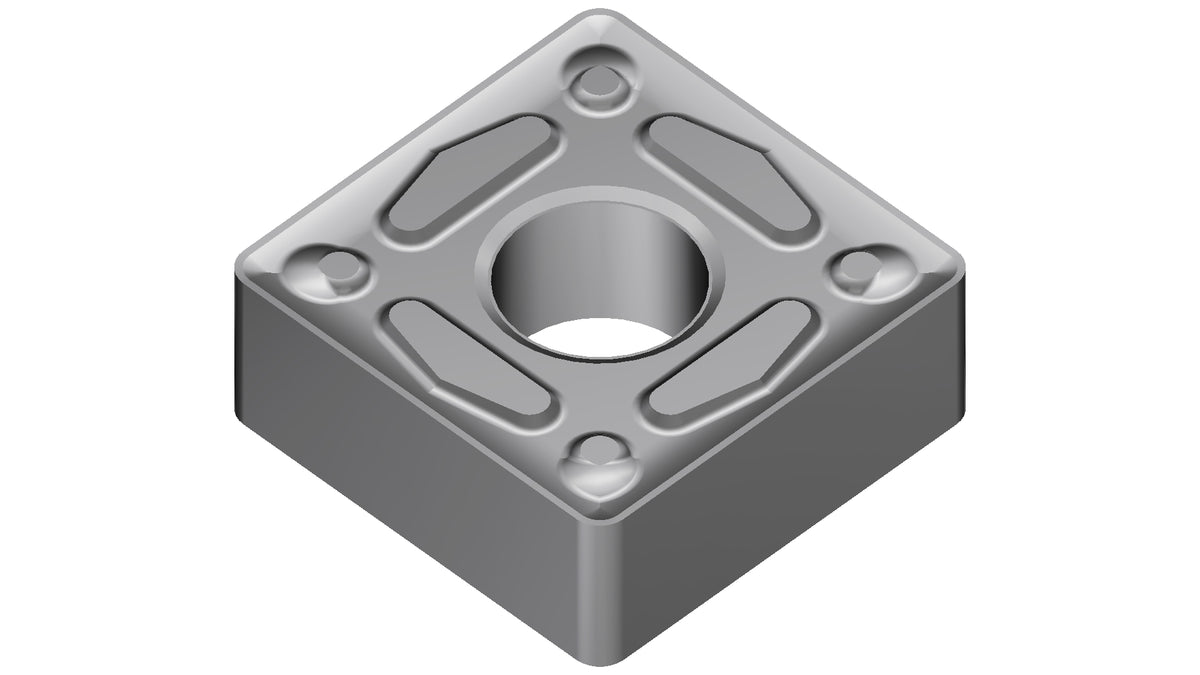

SNMG250924N-UG-AC8035P
Turning InsertAC8035PSKU: SNMG250924N-UG-AC8035P
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- SNMG250924N-UG-AC8035P
- Products Classification 1
- ISO Standard
- Products Classification 2
- Square Type
- GRADE
- AC8035P
- Cutting range
- Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 9.12
- Inscribed circle (d)
- 25.4
- Cutting edge length (l)
- 25.4
- Relief angle
- 0
- Angle
- 90
- Chipbreaker rake angle
- 4
- RE
- 2.4
- Thickness (s)
- 9.52
- Inscribed circle tolerance (td)
- 0.18
- Height tolerance (tm)
- 0.13
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- UG
- Insert shape code
- S
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- G
- Cutting edge length code
- 25
- Thickness code
- 9
- Nose radius (r)
- 2.4
Cutting range
Medium cutting
Industry
Automotive
Series
Indexable Inserts for Turning
Material
Cemented carbide
Category
Turning
