Sumitomo Electric Hardmetal

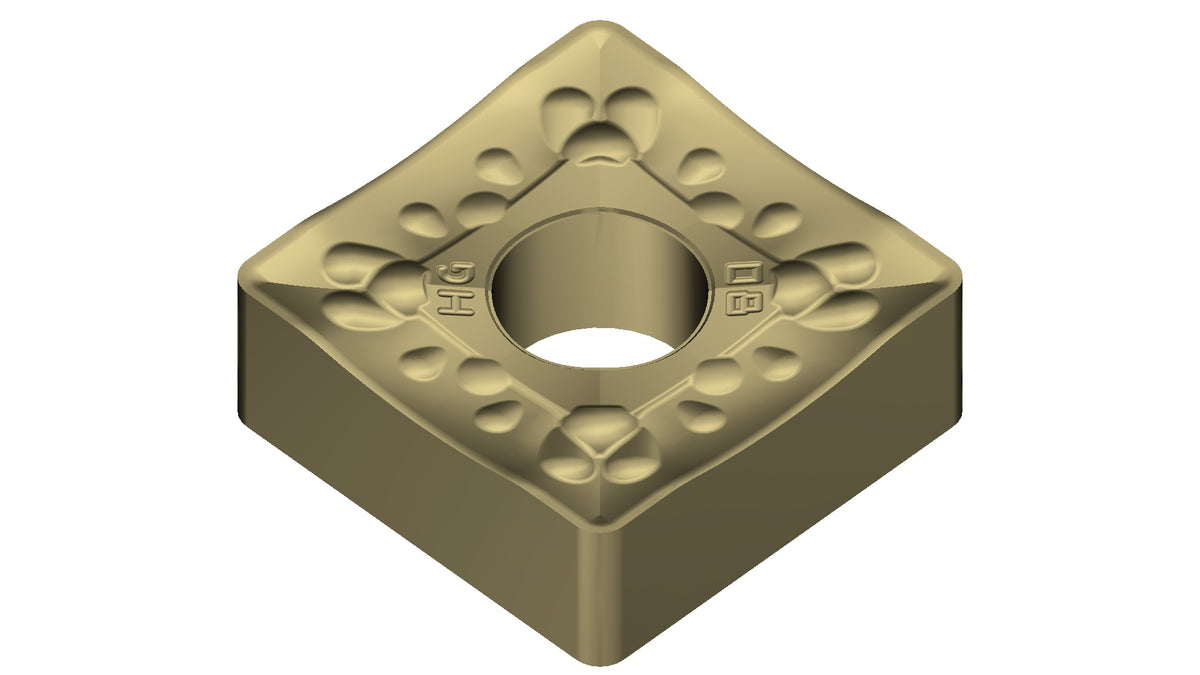

SNMM150616N-HG-AC8115P
Turning InsertAC8115PSKU: SNMM150616N-HG-AC8115P
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- SNMM150616N-HG-AC8115P
- Products Classification 1
- ISO Standard
- Products Classification 2
- Square Type
- GRADE
- AC8115P
- Cutting range
- Heavy Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 6.35
- Inscribed circle (d)
- 15.875
- Cutting edge length (l)
- 15.875
- Relief angle
- 0
- Angle
- 90
- Chipbreaker rake angle
- 0
- RE
- 1.6
- Thickness (s)
- 6.35
- Inscribed circle tolerance (td)
- 0.1
- Height tolerance (tm)
- 0.15
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Gold
- Chipbreaker
- HG
- Insert shape code
- S
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- M
- Cutting edge length code
- 15
- Thickness code
- 6
- Nose radius (r)
- 1.6
Cutting range
Heavy cutting
Industry
Automotive
Series
Indexable Inserts for Turning
Material
Cemented carbide
Category
Turning
