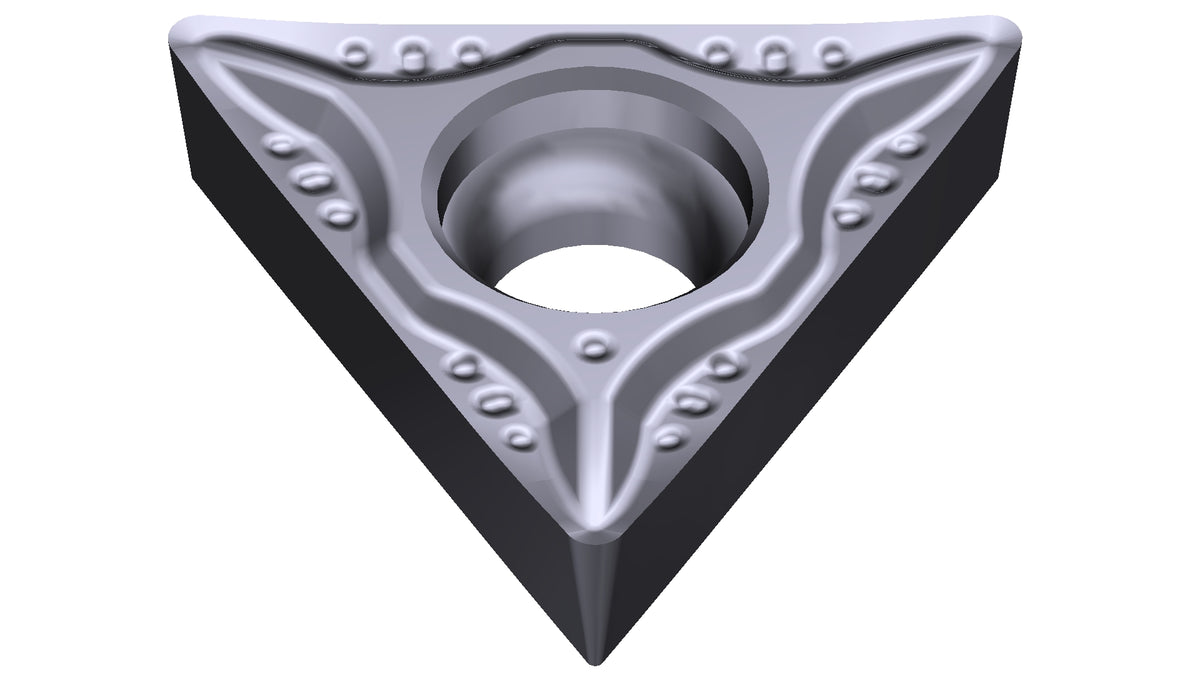

TCGT110202MN-SI-AC5025S

Sumitomo Electric Hardmetal

TCGT110202MN-SI-AC5025S

Turning InsertAC5025SSKU: TCGT110202MN-SI-AC5025S

Sign in to view pricing

Sign In Register

Sign In to View Price

Request a Quote

100% genuine

Technical support

Item code: TCGT110202MN-SI-AC5025S
Products Classification 1: ISO Standard
Products Classification 2: Triangular Type
GRADE: AC5025S
Cutting range: Light Cutting
Hand: Neutral
Hole diameter (d1): 2.8
Inscribed circle (d): 6.35
Cutting edge length (l): 11
Relief angle: 7
Angle: 60
Chipbreaker rake angle: 15
RE: < 0.2
Thickness (s): 2.38
Inscribed circle tolerance (td): 0.025
Height tolerance (tm): 0.025
Thickness tolerance (ts): 0.13
Negative Positive: Positive
Hole: Yes
Inserts color: Silver
Chipbreaker: SI
Insert shape code: T
Relief angle code: C
Tolerance code: G
Insert hole code: T
Cutting edge length code: 11
Thickness code: 2
Nose radius (r): 0.2
