Sumitomo Electric Hardmetal

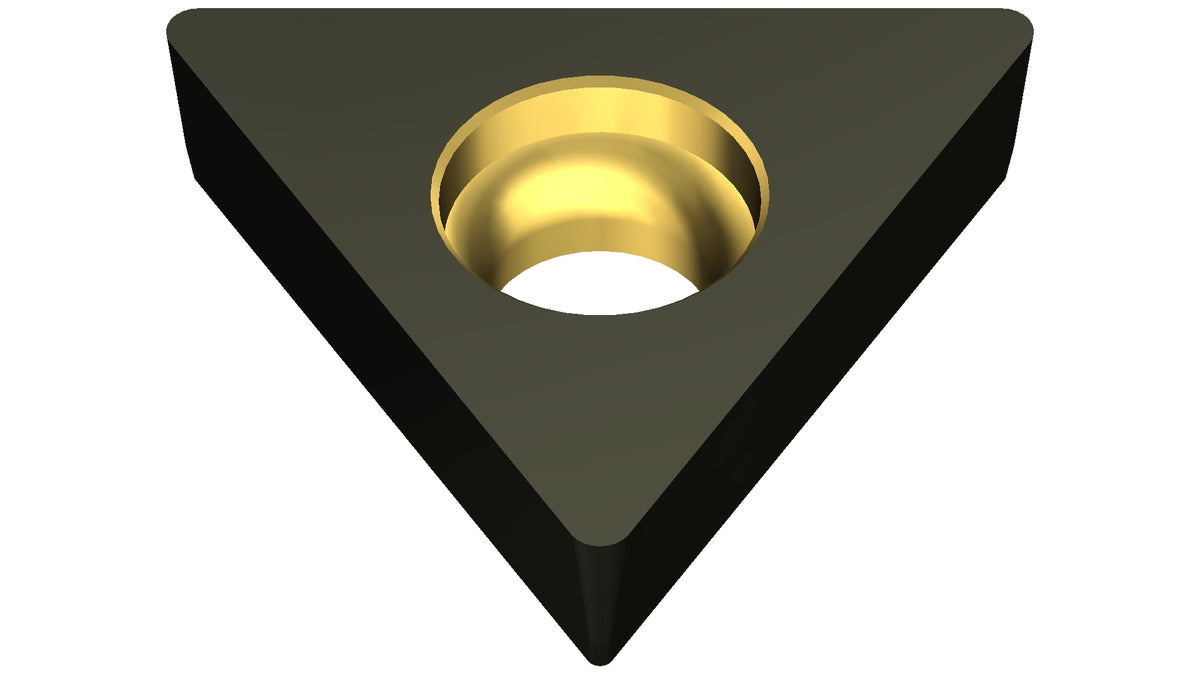

TCMW16T304-AC4010K
Turning InsertAC4010KSKU: TCMW16T304-AC4010K
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- TCMW16T304-AC4010K
- Products Classification 1
- ISO Standard
- Products Classification 2
- Triangular Type
- GRADE
- AC4010K
- Cutting range
- Light Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 4.3
- Inscribed circle (d)
- 9.525
- Cutting edge length (l)
- 16.5
- Relief angle
- 7
- Angle
- 60
- RE
- 0.4
- Thickness (s)
- 3.97
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Black+Gold
- Insert shape code
- T
- Relief angle code
- C
- Tolerance code
- M
- Insert hole code
- W
- Cutting edge length code
- 16
- Thickness code
- T3
- Nose radius (r)
- 0.4
Cutting range
Light cutting
Industry
Automotive
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
