Sumitomo Electric Hardmetal

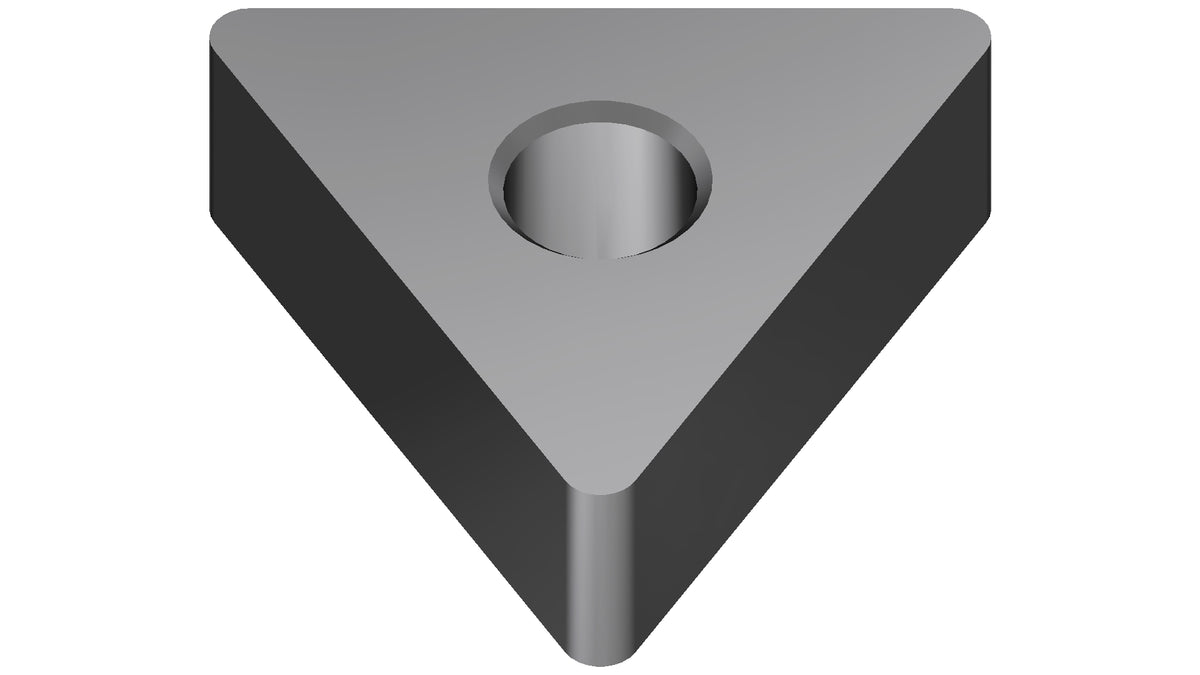

TNGA110304-H1
Turning InsertH1SKU: TNGA110304-H1
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- TNGA110304-H1
- Products Classification 1
- ISO Standard
- Products Classification 2
- Triangular Type
- GRADE
- H1
- Cutting range
- Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 2.26
- Inscribed circle (d)
- 6.35
- Cutting edge length (l)
- 11
- Relief angle
- 0
- Angle
- 60
- RE
- 0.4
- Thickness (s)
- 3.18
- Inscribed circle tolerance (td)
- 0.025
- Height tolerance (tm)
- 0.025
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver
- Insert shape code
- T
- Relief angle code
- N
- Tolerance code
- G
- Insert hole code
- A
- Cutting edge length code
- 11
- Thickness code
- 3
- Nose radius (r)
- 0.4
Cutting range
Medium cutting
Series
Indexable Inserts for Turning
Material
Cemented carbide
Category
Turning
