Sumitomo Electric Hardmetal

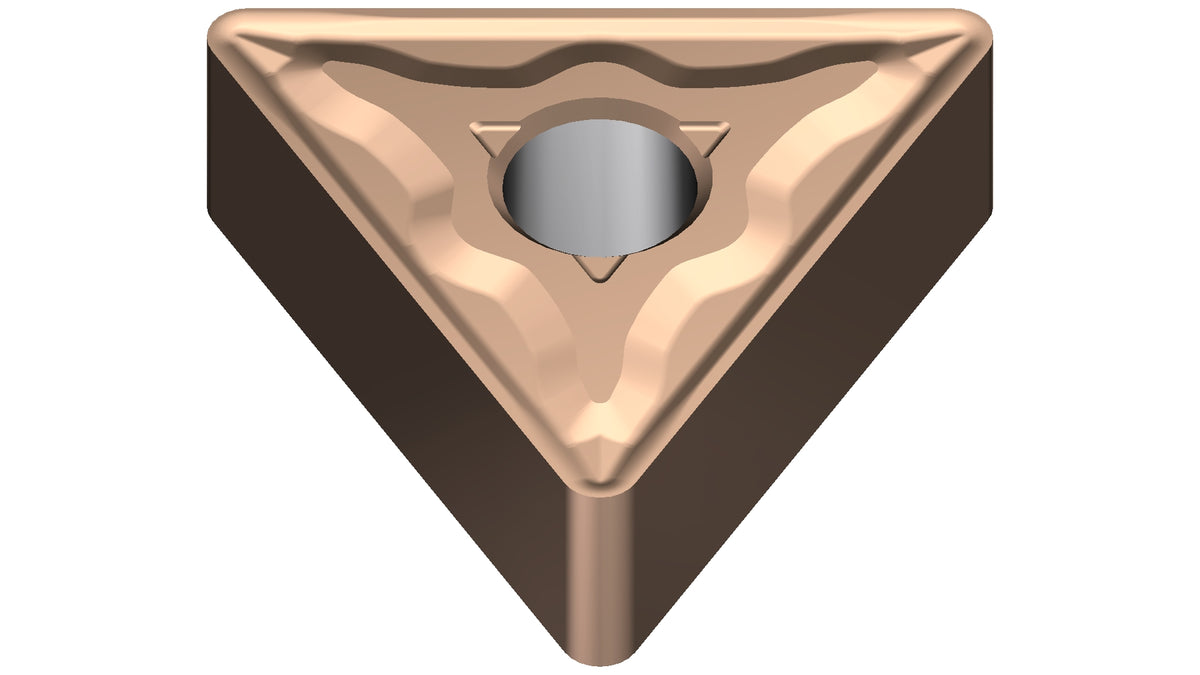

TNMG330924N-EM-AC6135M
Turning InsertAC6135MSKU: TNMG330924N-EM-AC6135M
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- TNMG330924N-EM-AC6135M
- Products Classification 1
- ISO Standard
- Products Classification 2
- Triangular Type
- GRADE
- AC6135M
- Cutting range
- Medium to Roughing
- Hand
- Neutral
- Hole diameter (d1)
- 7.93
- Inscribed circle (d)
- 19.05
- Cutting edge length (l)
- 33
- Relief angle
- 0
- Angle
- 60
- Chipbreaker rake angle
- 0
- RE
- 2.4
- Thickness (s)
- 9.52
- Inscribed circle tolerance (td)
- 0.1
- Height tolerance (tm)
- 0.15
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Brown
- Chipbreaker
- EM
- Insert shape code
- T
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- G
- Cutting edge length code
- 33
- Thickness code
- 9
- Nose radius (r)
- 2.4
Cutting range
Medium to roughing
Series
Indexable Inserts for Turning
Material
Cemented carbide
Category
Turning
