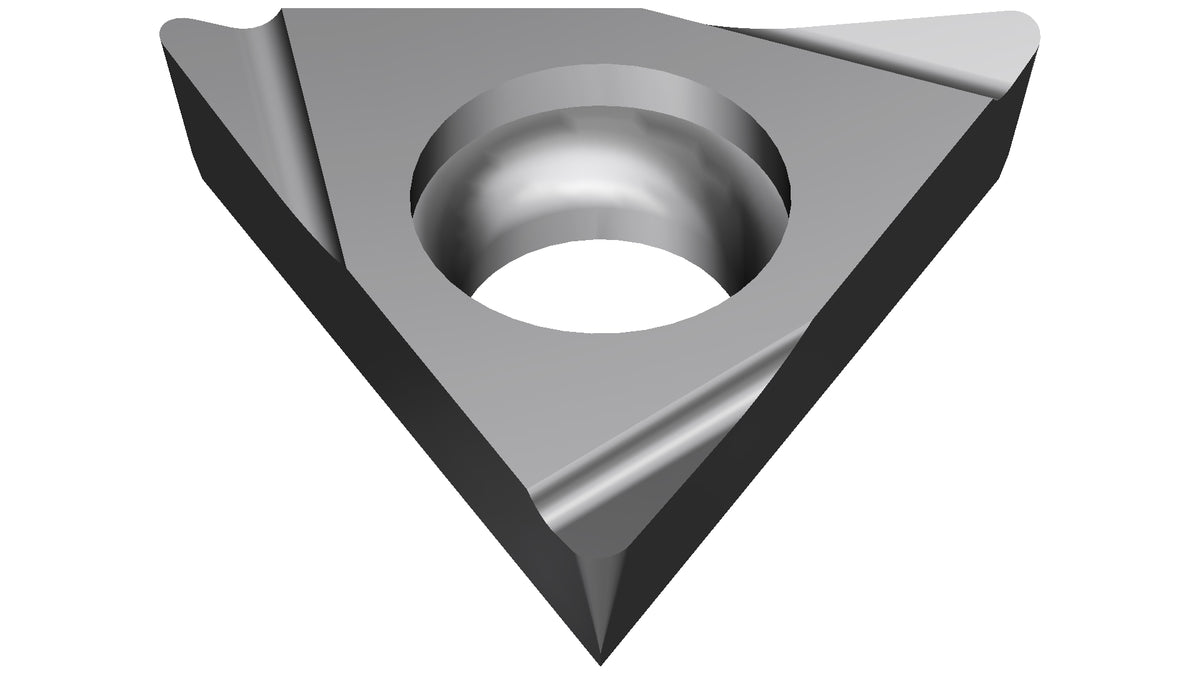

TPGT090202R-FY-T1500A
Sumitomo Electric Hardmetal

TPGT090202R-FY-T1500A

Turning InsertT1500ASKU: TPGT090202R-FY-T1500A

Sign in to view pricing

Sign In Register
Request a Quote

100% genuine

Technical support

Share
Item code
TPGT090202R-FY-T1500A
Products Classification 1
ISO Standard
Products Classification 2
Triangular Type
GRADE
T1500A
Cutting range
Finishing
Hand
Right
Hole diameter (d1)
2.3
Inscribed circle (d)
5.56
Cutting edge length (l)
9.6
Relief angle
11
Angle
60
Chipbreaker rake angle
15
RE
0.2
Thickness (s)
2.38
Inscribed circle tolerance (td)
0.025
Height tolerance (tm)
0.025
Thickness tolerance (ts)
0.13
Negative Positive
Positive
Hole
Yes
Inserts color
Silver
Chipbreaker
FY
Insert shape code
T
Relief angle code
P
Tolerance code
G
Insert hole code
T
Cutting edge length code
9
Thickness code
2
Nose radius (r)
0.2
