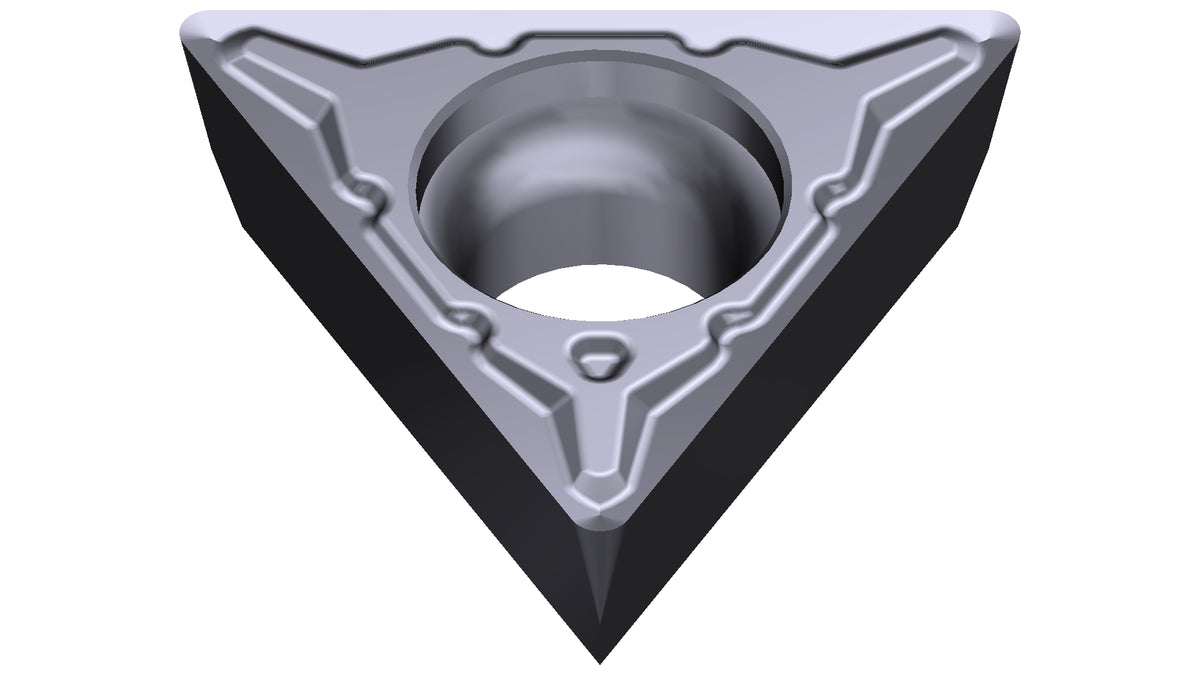

TPGT110302MN-FC-AC5015S

Sumitomo Electric Hardmetal

TPGT110302MN-FC-AC5015S

Turning InsertAC5015SSKU: TPGT110302MN-FC-AC5015S

Sign in to view pricing

Sign In Register

Sign In to View Price

Request a Quote

100% genuine

Technical support

Item code: TPGT110302MN-FC-AC5015S
Products Classification 1: ISO Standard
Products Classification 2: Triangular Type
GRADE: AC5015S
Cutting range: Finishing
Hand: Neutral
Hole diameter (d1): 3.4
Inscribed circle (d): 6.35
Cutting edge length (l): 11
Relief angle: 11
Angle: 60
Chipbreaker rake angle: 15
RE: < 0.2
Thickness (s): 3.18
Inscribed circle tolerance (td): 0.025
Height tolerance (tm): 0.025
Thickness tolerance (ts): 0.13
Negative Positive: Positive
Hole: Yes
Inserts color: Silver
Chipbreaker: FC
Insert shape code: T
Relief angle code: P
Tolerance code: G
Insert hole code: T
Cutting edge length code: 11
Thickness code: 3
Nose radius (r): 0.2
