Sumitomo Electric Hardmetal

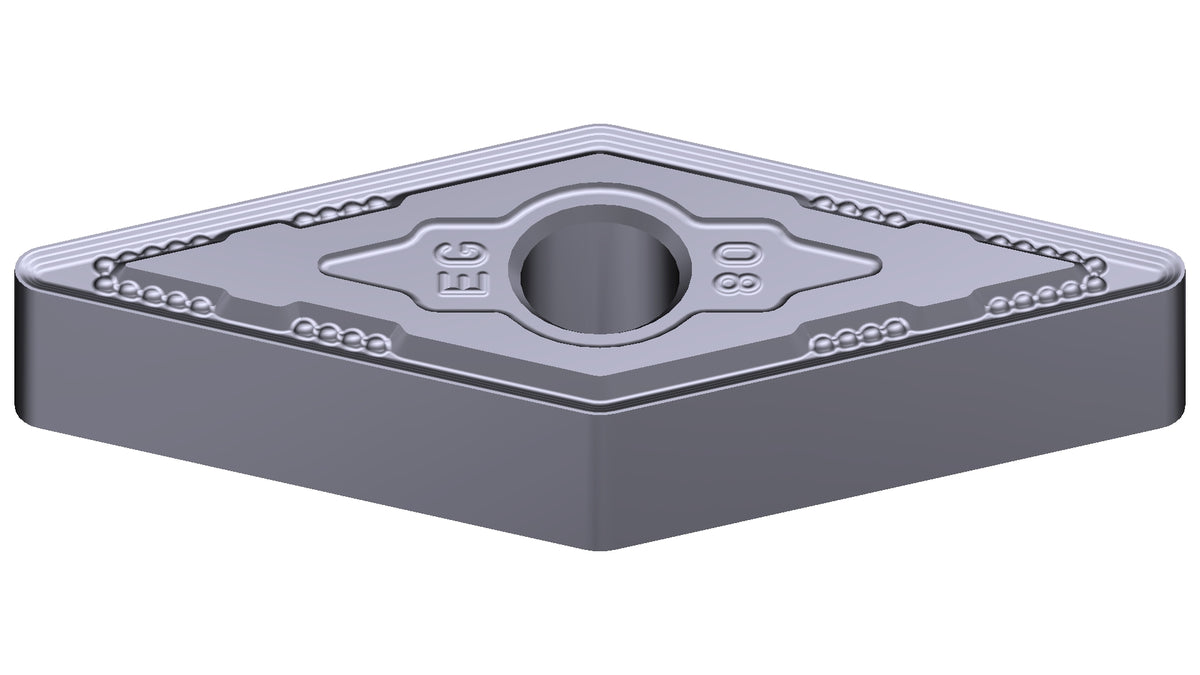

VNMG160412N-EG-AC5025S
Turning InsertAC5025SSKU: VNMG160412N-EG-AC5025S
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- VNMG160412N-EG-AC5025S
- Products Classification 1
- ISO Standard
- Products Classification 2
- 35°Diamond Type
- GRADE
- AC5025S
- Cutting range
- Medium Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 3.81
- Inscribed circle (d)
- 9.525
- Cutting edge length (l)
- 16.6
- Relief angle
- 0
- Angle
- 35
- Chipbreaker rake angle
- 0
- RE
- 1.2
- Thickness (s)
- 4.76
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.16
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- EG
- Insert shape code
- V
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- G
- Cutting edge length code
- 16
- Thickness code
- 4
- Nose radius (r)
- 1.2
Cutting range
Medium cutting
Industry
Aerospace
Series
Indexable Inserts for Turning
Material
Coated cermet
Category
Turning
