Sumitomo Electric Hardmetal
VPET1103003L-FY-AC1030U

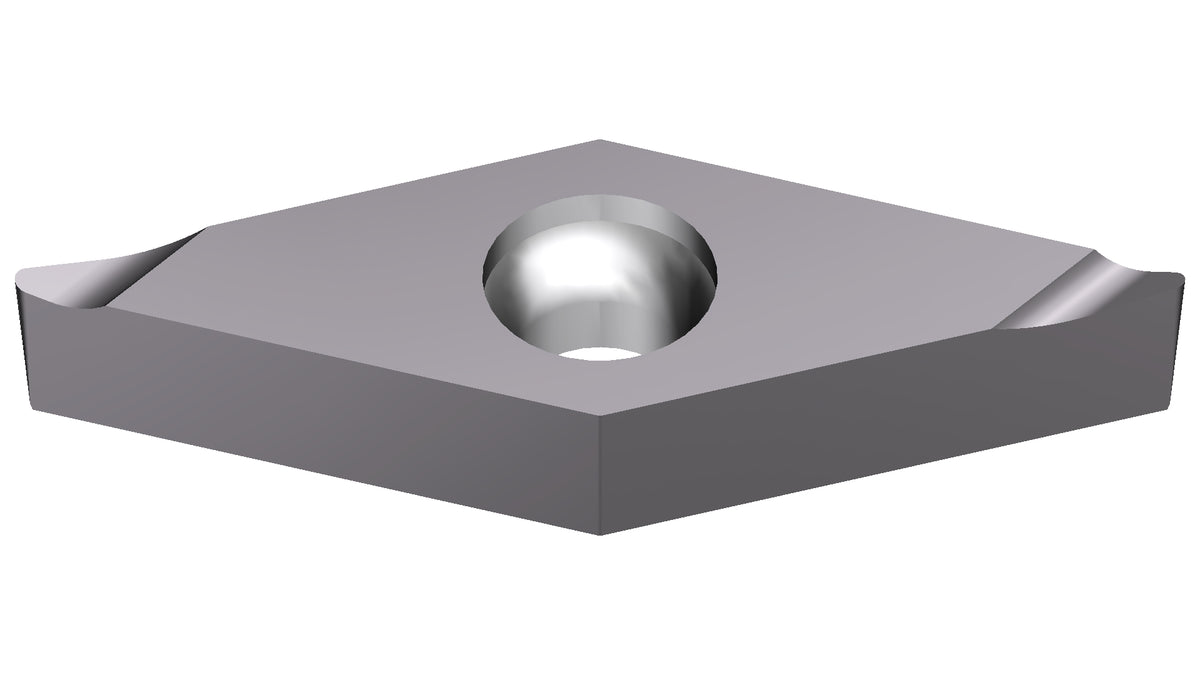

Turning InsertAC1030USKU: VPET1103003L-FY-AC1030U
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- VPET1103003L-FY-AC1030U
- Products Classification 1
- ISO Standard
- Products Classification 2
- 35°Diamond Type
- GRADE
- AC1030U
- Cutting range
- Finishing
- Hand
- Left
- Hole diameter (d1)
- 2.8
- Inscribed circle (d)
- 6.35
- Cutting edge length (l)
- 11.1
- Relief angle
- 11
- Angle
- 35
- Chipbreaker rake angle
- 15
- RE
- 0.03
- Thickness (s)
- 3.18
- Inscribed circle tolerance (td)
- 0.025
- Height tolerance (tm)
- 0.025
- Thickness tolerance (ts)
- 0.025
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- FY
- Insert shape code
- V
- Relief angle code
- P
- Tolerance code
- E
- Insert hole code
- T
- Cutting edge length code
- 11
- Thickness code
- 3
- Nose radius (r)
- 0.03
Cutting range
Finishing
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
