VPET110301R-FY-AC1030U

Sumitomo Electric Hardmetal

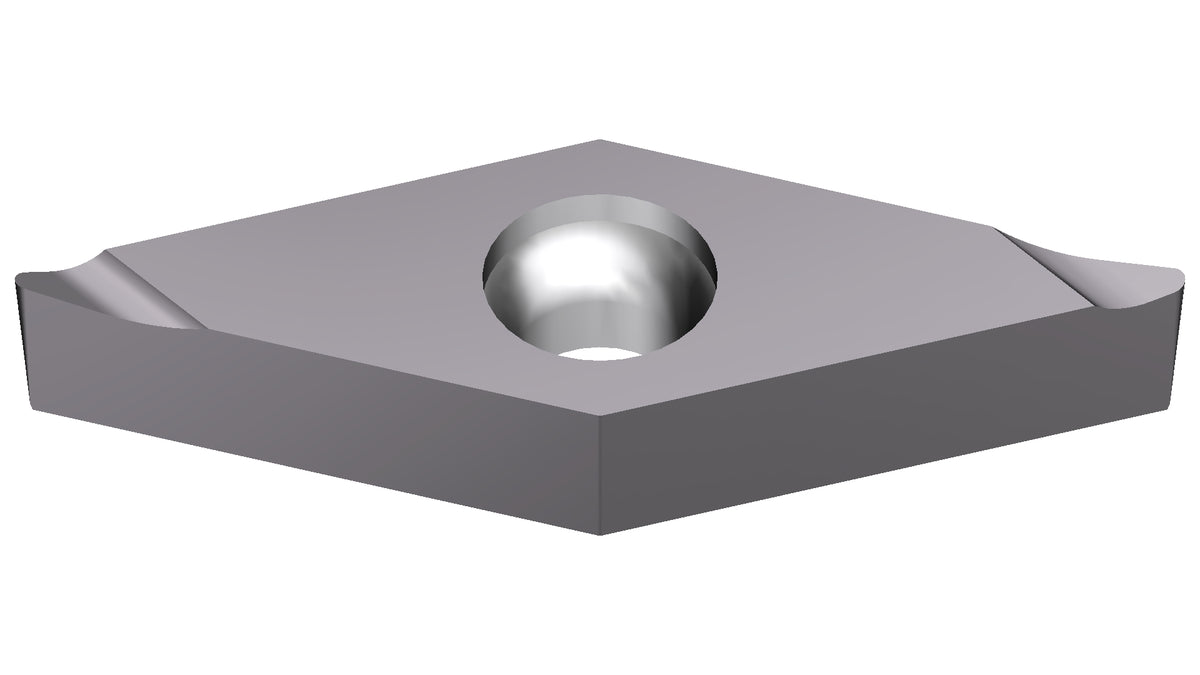

VPET110301R-FY-AC1030U

Turning InsertAC1030USKU: VPET110301R-FY-AC1030U

Sign in to view pricing

Sign In Register

Sign In to View Price

Request a Quote

100% genuine

Technical support

Item code: VPET110301R-FY-AC1030U
Products Classification 1: ISO Standard
Products Classification 2: 35°Diamond Type
GRADE: AC1030U
Cutting range: Finishing
Hand: Right
Hole diameter (d1): 2.8
Inscribed circle (d): 6.35
Cutting edge length (l): 11.1
Relief angle: 11
Angle: 35
Chipbreaker rake angle: 15
RE: 0.1
Thickness (s): 3.18
Inscribed circle tolerance (td): 0.025
Height tolerance (tm): 0.025
Thickness tolerance (ts): 0.025
Negative Positive: Positive
Hole: Yes
Inserts color: Silver
Chipbreaker: FY
Insert shape code: V
Relief angle code: P
Tolerance code: E
Insert hole code: T
Cutting edge length code: 11
Thickness code: 3
Nose radius (r): 0.1
