Sumitomo Electric Hardmetal

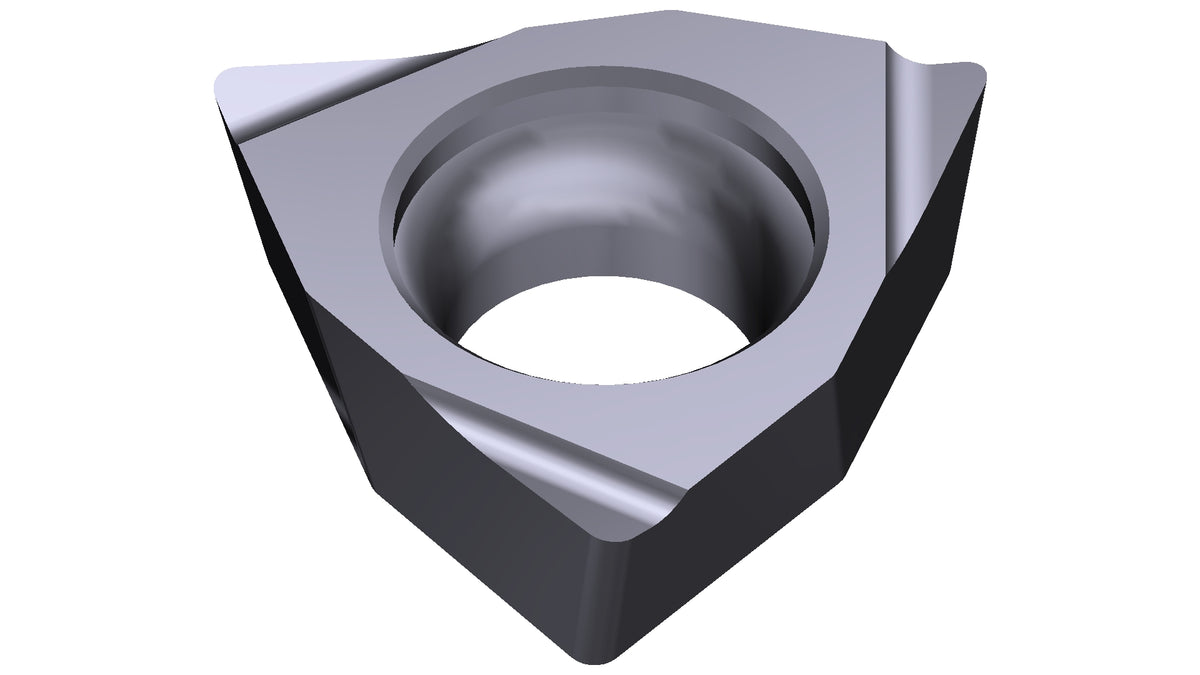

WBGT060102L-FY-AC5025S
Turning InsertAC5025SSKU: WBGT060102L-FY-AC5025S
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- WBGT060102L-FY-AC5025S
- Products Classification 1
- ISO Standard
- Products Classification 2
- Trigon Type
- GRADE
- AC5025S
- Cutting range
- Finishing
- Hand
- Left
- Hole diameter (d1)
- 2.2
- Inscribed circle (d)
- 3.97
- Cutting edge length (l)
- 3.2
- Relief angle
- 5
- Angle
- 80
- Chipbreaker rake angle
- 15
- RE
- 0.2
- Thickness (s)
- 1.59
- Inscribed circle tolerance (td)
- 0.025
- Height tolerance (tm)
- 0.025
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Silver
- Chipbreaker
- FY
- Insert shape code
- W
- Relief angle code
- B
- Tolerance code
- G
- Insert hole code
- T
- Cutting edge length code
- 6
- Thickness code
- 1
- Nose radius (r)
- 0.2
Cutting range
Finishing
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
