Sumitomo Electric Hardmetal

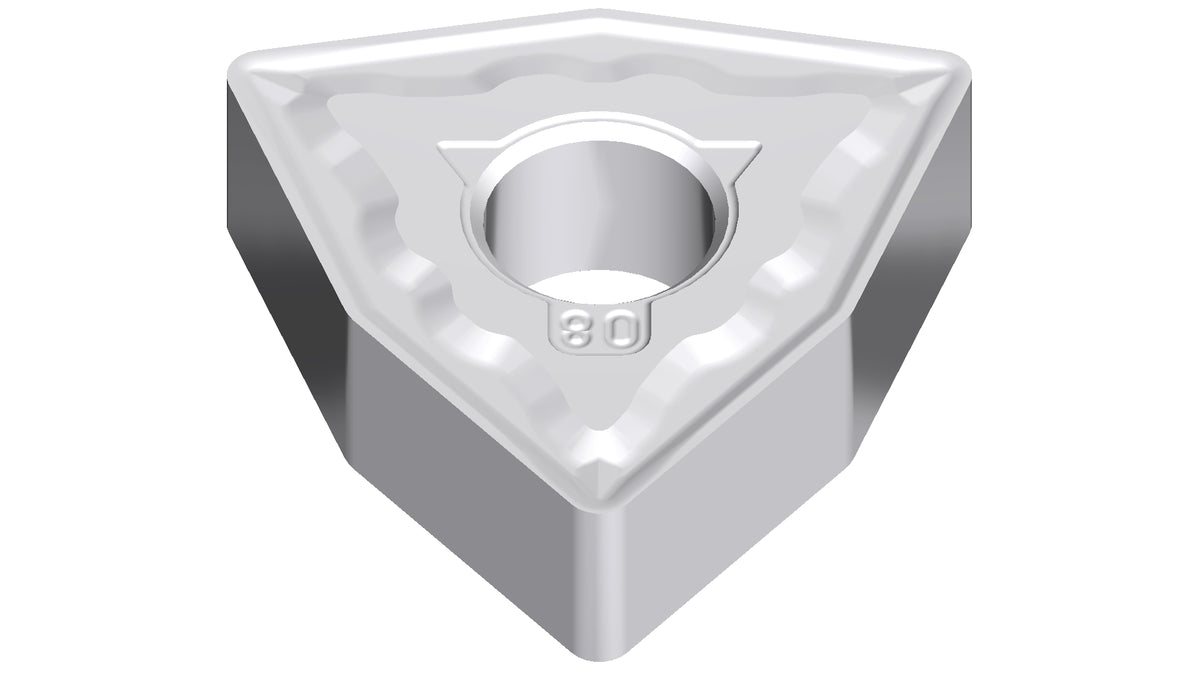

WNMG080408N-EM-AC9115T
Turning InsertAC9115TSKU: WNMG080408N-EM-AC9115T
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- WNMG080408N-EM-AC9115T
- Products Classification 1
- ISO Standard
- Products Classification 2
- Trigon Type
- GRADE
- AC9115T
- Cutting range
- Medium to Roughing
- Hand
- Neutral
- Hole diameter (d1)
- 5.16
- Inscribed circle (d)
- 12.7
- Cutting edge length (l)
- 8.7
- Relief angle
- 0
- Angle
- 80
- Chipbreaker rake angle
- 0
- RE
- 0.8
- Thickness (s)
- 4.76
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Negative
- Hole
- Yes
- Inserts color
- Silver-white
- Chipbreaker
- EM
- Insert shape code
- W
- Relief angle code
- N
- Tolerance code
- M
- Insert hole code
- G
- Cutting edge length code
- 8
- Thickness code
- 4
- Nose radius (r)
- 0.8
Cutting range
Medium to roughing
Industry
Aerospace
Series
Indexable Inserts for Turning
Material
Coated cermet
Category
Turning
