Sumitomo Electric Hardmetal

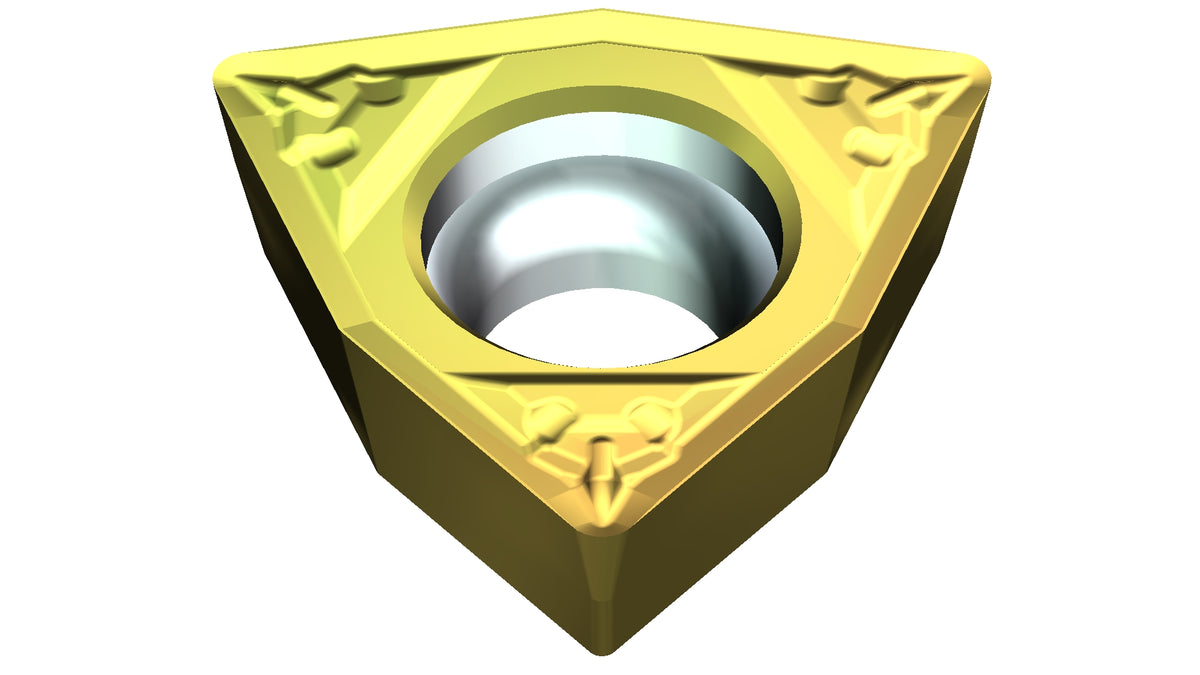

WPMT110204N-LB-T1500Z
Turning InsertT1500ZSKU: WPMT110204N-LB-T1500Z
This item can't be ordered online right now. Send us an enquiry and we'll confirm lead time and pricing for your quantity.
Enquire about availability100% genuine
Technical support
- Item code
- WPMT110204N-LB-T1500Z
- Products Classification 1
- ISO Standard
- Products Classification 2
- Trigon Type
- GRADE
- T1500Z
- Cutting range
- Light Cutting
- Hand
- Neutral
- Hole diameter (d1)
- 2.8
- Inscribed circle (d)
- 6.35
- Cutting edge length (l)
- 4.3
- Relief angle
- 11
- Angle
- 80
- Chipbreaker rake angle
- 15
- RE
- 0.4
- Thickness (s)
- 2.38
- Inscribed circle tolerance (td)
- 0.05
- Height tolerance (tm)
- 0.08
- Thickness tolerance (ts)
- 0.13
- Negative Positive
- Positive
- Hole
- Yes
- Inserts color
- Brown
- Chipbreaker
- LB
- Insert shape code
- W
- Relief angle code
- P
- Tolerance code
- M
- Insert hole code
- T
- Cutting edge length code
- 11
- Thickness code
- 2
- Nose radius (r)
- 0.4
Cutting range
Light cutting
Series
Indexable Inserts for Turning
Material
Cermic
Category
Turning
